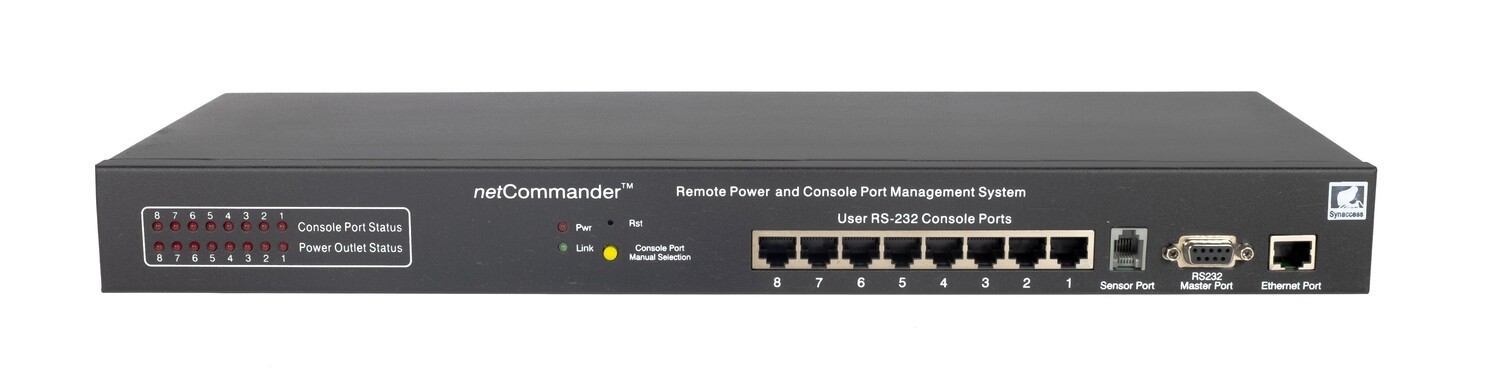

netCommander™ NPC-88U and NPC-88UH provide secured remote power source management of 8 independent outlets with an 8 serial console port switch and environment temperature monitoring* via TCP/IP networks or local direct connection.

Features:

• 8 Independently managed power outlets.
• 8 Serial console ports. (Multiplexer Switching)
• Status LEDs for each outlet, Selected serial port, link LED and device power LED
• Configure and control with HTTP/HTTPS web interface or command line via Telnet / Serial
• True RMS current sensor for each power input provides total amperage across outlet groups. (NPC-8801 or NPC-8802 Models Only)
• Supports TLSv1.2 encryption for HTTPS access
• Source IP Address Access Filtering/Blocking
• Use Autoping to reboot outlets after specified ping losses.
• Daily reboot or weekly schedule for outlet on/off time.
• Sync to NTP server or use real-time clock.
• Sends event notifications via email or view local event log.
• Restrict users to individual outlets as desired.
• Use external dial-up modem for backend solution (DB9 serial port)

Specifications: (Note - Applies to H version)

• 8 x NEMA 5-15R Outlets - (8 x IEC 320 C13 Outlets)
• Handles up to 15A at 110VAC - 10A at 220VAC
• 1U enclosure: L 19" x W 6" x H 1.75"
• 1 x DB9 RS232 Port: Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 19200.
• 8 x RJ-45 RS232 Port: Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 19200.
• Network Protocols: HTTP/HTTPS, IP/TCP, ICMP, NTP, SMTP, SNMP, DHCP, Telnet, and BootP
• Network Interface: 10/100-Base T. RJ-45.
• Operational Temperature Environment: -25C° → 50C°
• Humidity: 5-95%, non-condensing
• Safety and Compliance: cTUV(US & Canada), UL-60950, FCC Class A
