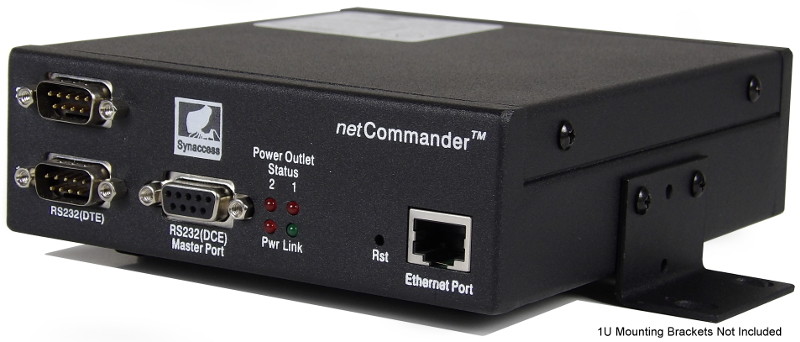

netCommander™ NPC-22T provide secured remote power source management of 2 independent outlets with 2 serial console ports. Serial ports can be accessed independently and concurrently.

Model Variations:

NPC-22T01 - Features of NPC-22 with current sensor aggregated across all outlets

Features:

• 2 Independently managed power outlets.
• 2 Concurrent serial console ports.
• Status LEDs for each outlet, link LED and device power LED
• Configure and control with HTTP/HTTPS web interface or command line via Telnet / Serial
• Supports SSL V3.0 1024-bit encryption for HTTPS access
• Use Autoping to reboot outlets after ping losses.
• Daily reboot or weekly scheduler for each outlet.
• Sync to NTP server or use real-time clock.
• Sends event notifications via email or view local event log.
• Restrict users to individual outlets as desired.
• Use external dial-up modem for backend solution (DB9 serial port)
• Optional 1U brackets for mounting on walls, under desk etc..

Specifications:

• 2 x NEMA 5-15R Outlets
• Handles up to 13A at 110VAC - 10A at 220VAC
• Compact enclosure: L 6.15" x W 5.40" x H 1.75"
• 1 x DB9 RS232 Port: Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 19200.
• 2 x DB9 RS232 User Ports: Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 19200.
• Network Protocols: ICMP, IP/TCP, NTP, SMTP, SNMP, DHCP, Telnet, HTTP/HTTPS and BootP
• Network Interface: 10/100-Base T. RJ-45.
• Operational Temperature Environment: -25C° → 50C°
• Humidity: 5-95%, non-condensing
• Safety and Compliance: cTUV(US & Canada), UL-60950, FCC Class A
