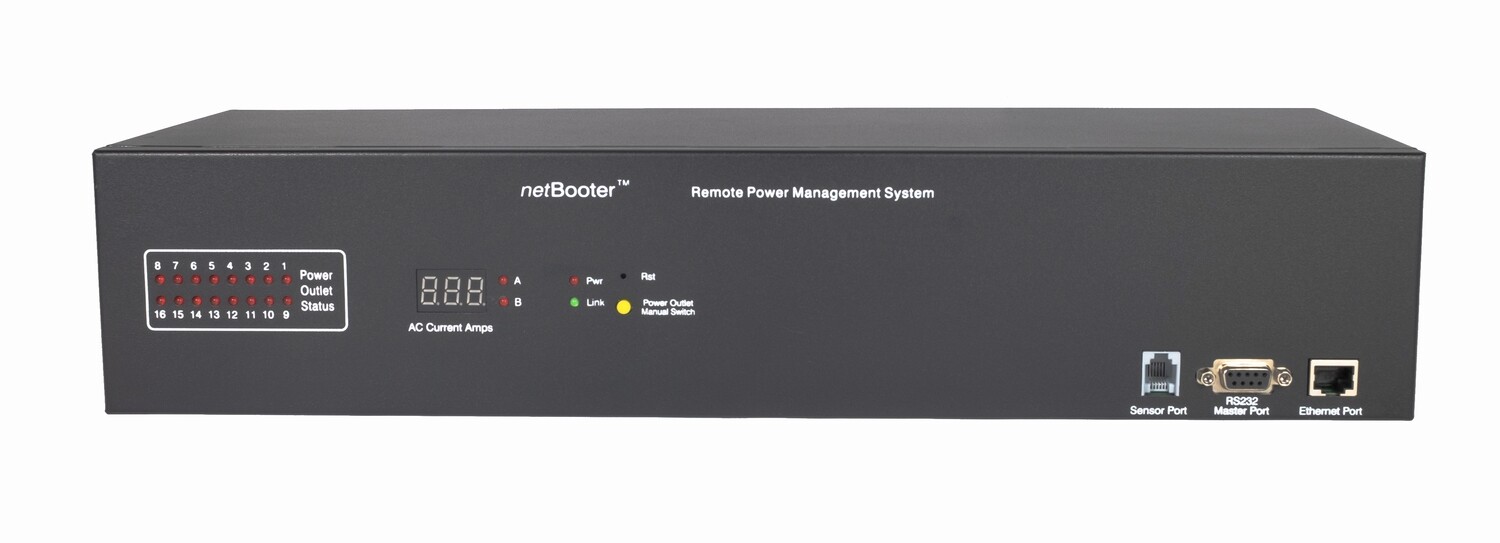

netBooter NP-1601DUA Switched and Metered PDU (20A Single Inlet)

Name: NP-1601D Single Cord Series
SKU: NP-1601DU-A-USB
Price: 433.0 USD
Availability: InStock

SKU NP-1601DU-A-USB

$433.00

On Sale

MSRP ~~$512.00~~ Save $79.00

Model

NP-1601DUA, USB Serial Port, NEMA5-15 Outlets, Single C19 Inlet, 120V

Inlet Power Cord

(PC-51519-6) 6' NEMA 5-15P to C19 Power Cord

(PC-L52019-8) 8' NEMA L5-20 to C19 Power Cord (+$24.95)

(PC-1419-6) 6' C14 to C19 Power Cord (+$13.95)

(PC-L62019-8) 8' NEMA L6-20P to C19 Power Cord (for H model) (+$39.63)

Mounting

2-U 19" Rack-Mount Bracket Pair

Additional Accessories

TS-0300 Temperature Sensor (+$34.75)

Quantity:

Product Details

PDU Series: netBooter DU Series

Outlet Count: 16

Form Factor: 2U

Inlet Type: IEC 320 C20

Inlet Count: 1

Current Measurement: Inlet Current Measurement

netBooter™NP-1601DUA and NP-1601DUHA provide secured remote power source management of 16 independent outlets. Includes true RMS AC current reading and environment temperature monitoring* via TCP/IP networks or local direct connection.

Single power input port C20 or attached power cord depending on type of AC power plug.

Features:

16 Independently managed power outlets. (8 outlets to each power input)
Status LEDs for each outlet, link LED and device power LED
True RMS current sensor for each power input. Individual readings for both outlet groups.
Configure and control with HTTP/HTTPS web interface or command line via Telnet / Serial
Supports TLSv1.2 encryption for HTTPS access
Source IP Address Access Filtering/Blocking
Use Autoping to reboot outlets after specified ping losses.
Daily reboot or weekly schedule for outlet on/off time.
Sync to NTP server or use real-time clock.
Sends event notifications via email or view local event log.
Restrict users to individual outlets as desired.
Use external dial-up modem for backend solution (DB9 serial port)

Specifications: (Note - Applies to H version)

16 x NEMA 5-15R Outlets - (or 16 x IEC 320 C13 Outlets)
Handles up to 20A at 110VAC - 20A at 220VAC
2U enclosure: L 19" x W 6.25" x H 3.5"
1 x DB9 RS232 Port: Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 19200.
Network Protocols: HTTP/HTTPS, IP/TCP, ICMP, NTP, SMTP, POP3, DHCP, Telnet, and BootP
Network Interface: 10/100-Base T. RJ-45.
Operational Temperature Environment: -25C° → 50C°
Humidity: 5-95%, non-condensing
Safety and Compliance: cTUV(US & Canada), UL-60950, FCC Class A
