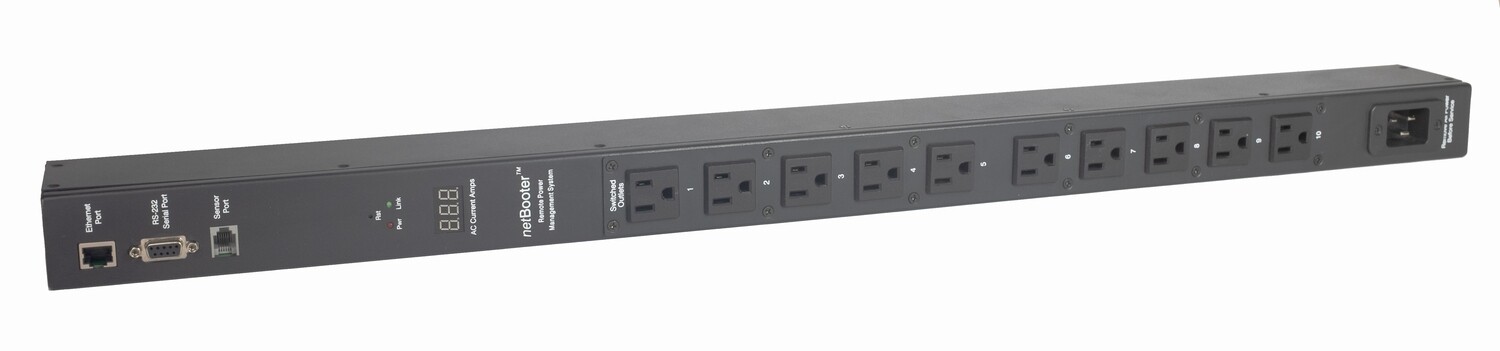

netBooter NP-10D Switched and Metered PDU
SKU NP-10DU-USB
$359.00
On Sale
MSRP $389.00 Save $30.00
Model
Inlet Power Cables
Mounting
Additional Accessories
1
Product Details
PDU Series: netBooter DU Series
Outlet Count: 10
Form Factor: 0U
Inlet Type: IEC 320 C20
Inlet Count: 1
Current Measurement: Inlet Current Measurement
netBooter™NP-10DU and NP-10DUH provide secured remote power source management of 10 independent outlets. Includes true RMS AC current reading and environment temperature monitoring* via TCP/IP networks or local direct connection. Enclosure in a 0U Vertical mount form factor.
Features:
- 10 Independently managed power outlets.
- NP-10DU: 10 x NEMA 5-15R Outlets
- NP-10DUH: 10 x IEC 320 C13 Outlets
- True RMS current sensor provides total amperage across all outlets.
- Configure and control with HTTP/HTTPS web interface or command line via Telnet / Serial
- Supports TLSv1.2 encryption for HTTPS access
- Source IP Address Access Filtering/Blocking
- Use Autoping to reboot outlets after specified ping losses.
- Daily reboot or weekly schedule for outlet on/off time.
- Sync to NTP server or use real-time clock.
- Sends event notifications via email or view local event log.
- Restrict users to individual outlets as desired.
- Handles up to 30A at 110VAC - 20A at 220VAC
- 0U enclosure: L 31.75" x W 2.8" x H 1.75"
- 1 x DB9 RS232 Port: Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 19200.
- Network Protocols: HTTP/HTTPS, IP/TCP, ICMP, NTP, SMTP, POP3, DHCP, Telnet, and BootP
- Network Interface: 10/100-Base T. RJ-45.
- Operational Temperature Environment: -25C° → 50C°
- Humidity: 5-95%, non-condensing
- Safety and Compliance: cTUV(US & Canada), UL-60950, FCC Class A
