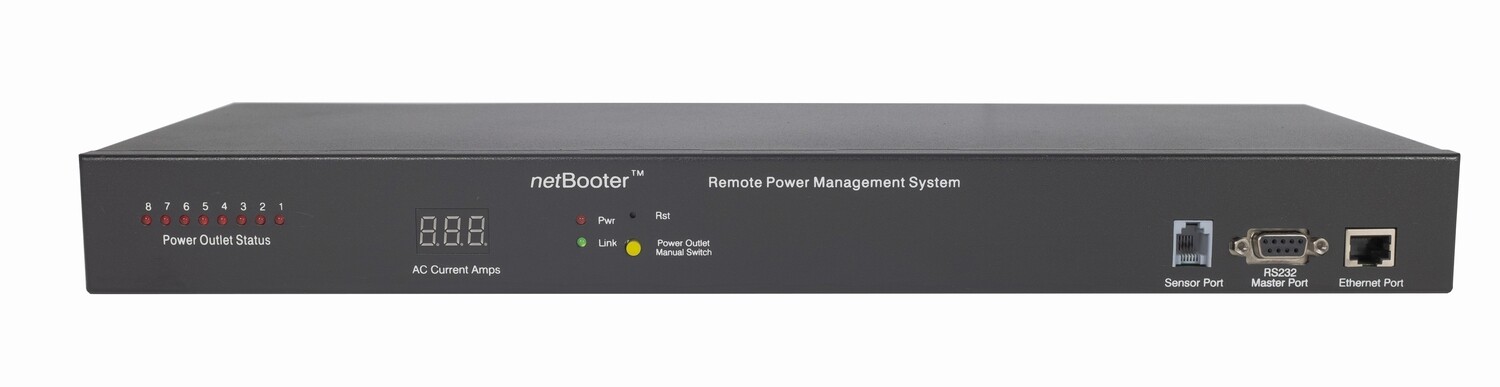

netBooter™NP-0801DU and NP-0801DUH provide secured remote power source management of 8 independent outlets. Includes true RMS AC current reading and environment temperature monitoring* via TCP/IP networks or local direct connection.

Features:

• 8 Independently managed power outlets.
• Status LEDs for each outlet, link LED and device power LED
• Configure and control with HTTP/HTTPS web interface or command line via Telnet / Serial
• True RMS current sensor for each power input provides total amperage across outlet groups.
• Supports TLSv1.2 encryption for HTTPS access
• Source IP Address Access Filtering/Blocking
• Use Autoping to reboot outlets after specified ping losses.
• Daily reboot or weekly schedule for outlet on/off time.
• Sync to NTP server or use real-time clock.
• Sends event notifications via email or view local event log.
• Restrict users to individual outlets as desired.
• Use external dial-up modem for backend solution (DB9 serial port)

Specifications: (Note - Applies to H version)

• 8 x NEMA 5-15R Outlets - (8 x IEC 320 C13 Outlets)
• Handles up to 15A at 110VAC - 10A at 220VAC
• 1U enclosure: L 19" x W 6" x H 1.75"
• 1 x DB9 RS232 Port: Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 115200.
• Network Protocols: HTTP/HTTPS, IP/TCP, ICMP, NTP, SMTP, DHCP, Telnet, and BootP
• Network Interface: 10/100-Base T. RJ-45.
• One temperature probe port.
• Operational Temperature Environment: -25C° → 50C°
• Humidity: 5-95%, non-condensing
• Safety and Compliance: cTUV(US & Canada), UL-60950, FCC Class A
