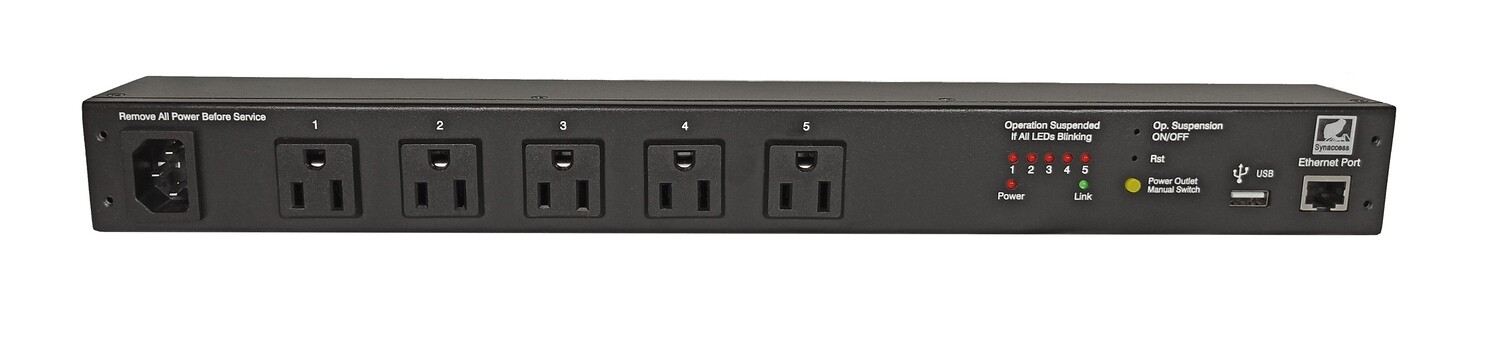

netBooter™NP-05B Switched PDU offers independent control of five outlets in a small, robust form factor. Manageable via TCP/IP network or direct serial connection and adaptable with the 1U brackets (included) for mounting.
Power distribution for the 19" rack or your workstation in a power strip form factor.
Features:
- 5 Independently managed power outlets.
- Status LEDs for each outlet, link LED and device power LED
- Configure and control with HTTP web interface or command line via Telnet / Serial
- Use Autoping to reboot outlets after specified ping losses.
- Daily reboot or weekly schedule for outlet on/off time.
- Sync to NTP server or use real-time clock.
- Sends event notifications via email or view local event log.
- Restrict users to individual outlets as desired.
- Use external dial-up modem for backend solution (DB9 serial port)
- 1U Brackets can also allow mounting on walls, under a desk etc..
Specifications:
- 5 x NEMA 5-15R Outlets or 5 X IEC320 C13 Outlets (NP-05BH model)
- Handles up to 15A at 110VAC - 10A at 220VAC
- Compact enclosure: L 19" x W 2.125" x H 1.75"
- 1 x USB Port: Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 19200.
- Network Protocols: HTTP, IP/TCP, ICMP, NTP, SMTP, DHCP, Telnet, and BootP
- Network Interface: 10-Base T. RJ-45.
- Operational Temperature Environment: -25C° → 50C°
- Humidity: 5-95%, non-condensing
- Safety and Compliance: cTUV(US & Canada), UL-60950, FCC Class A
