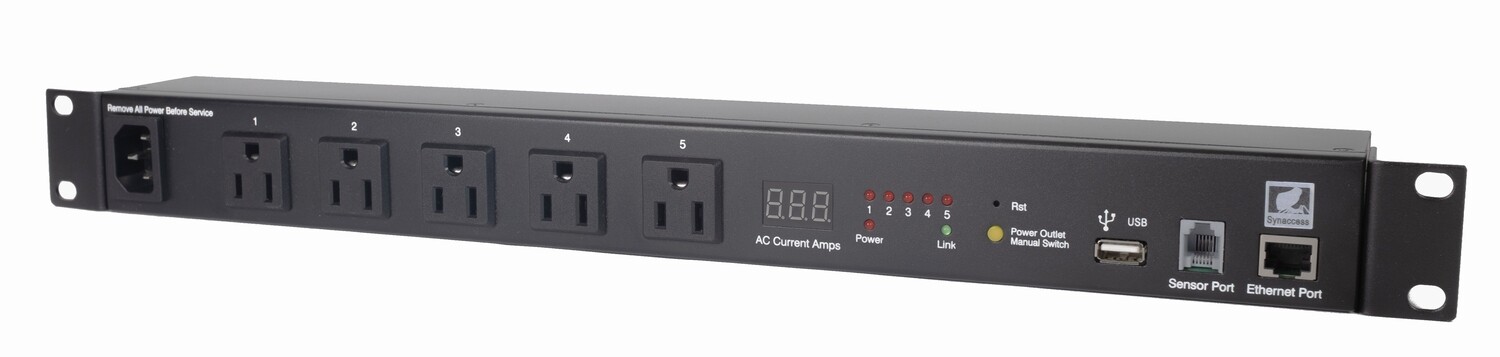

netBooter™NP-0501 Series PDU provides independent control of five outlets with True RMS current sensing totaled across all outlets. Operations are managed via TCP/IP network or direct USB serial connection. It is adaptable with the 1-U brackets for rack mounting. With an optional TS-0300 temperature sensor, the environment can be monitored.

Features:

• 5 Independently managed power outlets.
• True RMS current sensor provides total amperage across all outlets.
• Status LEDs for each outlet, link LED and device power LED
• Configure and control with HTTP/HTTPS web interface or command line via Telnet / Serial
• Supports TLSv1.2 encryption for HTTPS access
• Use Autoping to reboot outlets after specified ping losses
• Daily reboot or weekly schedule for outlet on/off time
• Sync to NTP server or use real-time clock
• Sends event notifications via email or view local event log
• Restrict users to individual outlets as desired
• Use external dial-up modem for backend solution (DB9 serial port)
• Optional 1U brackets for mounting on walls, under desk etc..

Specifications:

• 5 x NEMA 5-15R Outlets
• Handles up to 15A at 110VAC (10A at 220VAC)
• Compact enclosure: L 19"" x D 2.1" x H 1.75" (1U Rackmount or Wall Mount)
• 1 x USB Port: Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 19200.
• Network Protocols: ICMP, IP/TCP, NTP, SMTP, POP3, DHCP, Telnet, HTTP/HTTPS and BootP
• Network Interface: 10/100-Base T. RJ-45.
• Operational Temperature Environment: -25C° → 50C°
• Humidity: 5-95%, non-condensing
• Safety and Compliance: cTUV(US & Canada), UL-60950, FCC Class A
