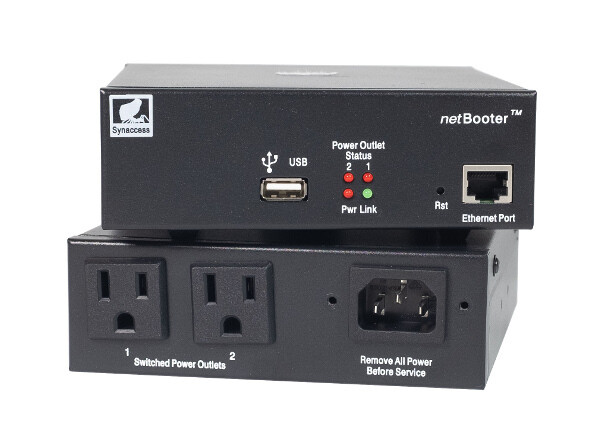

The netBooter™NP-02B and NP-02BH Switched PDU provides independent control of two outlets in a small, robust form factor. Manageable via TCP/IP network or direct serial connection and adaptable with the 1U brackets (optional) for mounting. Control power to your devices with the ability to fit just about anywhere.
One of the most popular units for remote installations!
Features:
- 2 Independently managed power outlets.
- Status LEDs for each outlet, link LED and device power LED
- Configure and control with HTTP web interface or command line via Telnet / USB Serial Port
- Use Autoping to reboot outlets after ICMP ping losses.
- Daily reboot or weekly scheduler for each outlet.
- Sync to NTP server or use real-time clock.
- Sends event notifications via email or view local event log.
- Restrict users to individual outlets as desired.
- Optional 1U brackets for mounting on walls, under desk etc..
Specifications:
- 2 x NEMA 5-15R Outlets (NP-02HB - 2 x IEC-320 C13 Outlets)
- Handles up to 13A at 110VAC - 10A at 220VAC
- Compact enclosure: L 6.15" x W 5.40" x H 1.75"
- 1 x USB Serial Port: Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 115200.
- Network Protocols: ICMP, IP/TCP, NTP, SMTP, DHCP, Telnet, HTTP and BootP
- Network Interface: 10-Base T. RJ-45.
- Operational Temperature Environment: -25C° → 50C°
- Humidity: 5-95%, non-condensing
- Safety and Compliance: cTUV(US & Canada), UL-60950, FCC Class A
